UHF Vehicle Tag
ACTA-KTG-1004-UHF UHF Vehicle Tag
ACTA-KTG-1004-UHF is compliantwith ISO18000-6C (EPC Class 1 GEN2) standard. Professional antenna design achieves high gain, high sensitivity and farther read range.
With anti-metal design and other special design to overcome various environmental changes, ACTA-KTG-1004-UHF is heatproof, cold resistant, waterproof, shockproof, and anti-glare interference, making it suitable for use in a variety of different metal automatic identification objects.
- 860MHz~960MHz
- ISO1800-6C(EPC Class 1 GEN2)
- Contains high-gain antenna, offering a read range of more than 8 meters
- Heatproof, cold resistant, waterproof, shockproof, and anti-glare interference

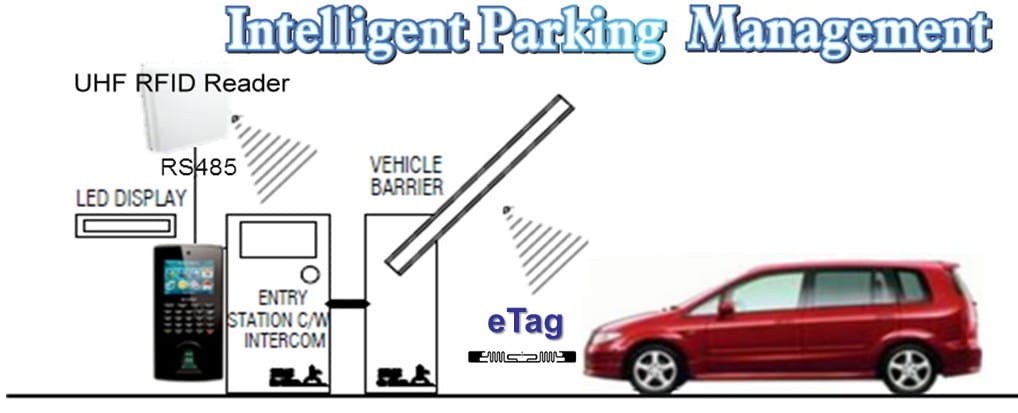

- Suitable for access control in outdoor environment
Compliance Standard EPC Class1 Gen2
Operatung Frequency 860-960MHz
Operating Mode Passive
Wet Inlay Dimension 97 x 12 (mm)
Chip IC type Alien H3
ESD (HBM) 2000V
Material Compatibility Optimized for plastic
Storage Temperature -40 to 100℃ Non-condensing
Operating Temperature -40 to 85℃ Non-condensing
Memory:
EPC 96 bit
T I D 64 bit
