Passive long range reader
ACTA-E190-UHF Passive long range reader

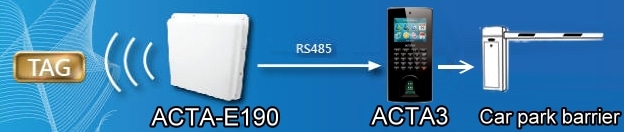

ACTA-E190-UHF Built-in high sensitivity 6.5 dBi gain antenna and 25 dBm RF module with data output via RS485 interface., it can be remote link communications with terminal equipment.
- Bulit-in 25 dBm RF module and 6.5 dBm gain antenna
- Electronic tag compliant with EPC Gen (ISO18000-6C) standard
- Invention patented design to reduce EMI radiation
- Supports data output via communication interfaces including RS485
- Intergrated output design for easy installation
- Wall mount design can be applied to indoor access control
Operating Voltage 12V
Antenna Gain 6.5 dbi
Antenna Connection 50 ohm U.FL.
Transmitting Power 25 dBm (Adjustable)
Communication RS485
Operating Frequency 902-928 MHz
Supported Transponders EPC Gen2(ISO 18000-6C)
Modulation PR-ASK,ASK
Current Consumption < 1A
Temperature Range Operating -20C to +55C, Storage -20C to +85C
Receiving sensitivity -85 dBm
Reading range (Avg.) > 5M
Dimension( L x W x H ) 117 x 117 x 44.4 mm
